Triggers

Triggers define the conditions for triggering actions. When the triggering conditions are met, the triggers will perform checks based on the configuration and execute the corresponding actions.

trigger_4

Trigger Name​

Fill in meaningful name information according to business requirements.

trigger_5

Trigger Conditions​

The platform supports the following two triggering moments:

  • When update file to record
  • When the task status updated

Update file to record​

When a new file is uploaded to a record, the trigger will check whether the file wildcard, file source, and record label meet the triggering conditions.

  • File wildcard: Used to match whether the uploaded file conforms to the relevant format definition. Learn more about the syntax logic.
  • File source: Used to match whether the user uploading the file is a member or a device.
  • Record label: Used to match the tag information of the record. Note that changes to the record label will not trigger the system to check the relevant triggers. For example, if you add a new label to a record, the trigger will not check and run the corresponding action. Currently, only file uploads can trigger the execution of the trigger.

For example, if the file wildcard matches *.mcap, the file source includes Members, and the record tags include YOLO, it means that when a file is uploaded to a record, if the file format is .mcap, the file uploader is a member, and the record has the YOLO label, the trigger will execute the action.

trigger_6

Task status updated​

When the status of a "Manual Collection Task" or a "Rule-based Collection Task" changes, the trigger will check whether the task status meets the triggering conditions.

For example, when a manual collection task is completed, the trigger will execute the action.

trigger_7

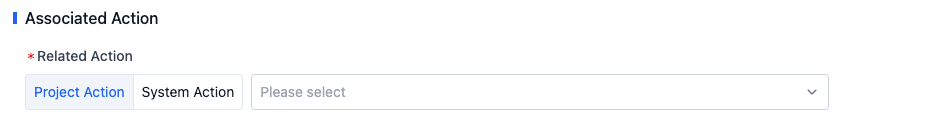

Associated Actions​

All actions created by the user on the Actions page are project actions and can be selected as needed. Based on common business scenarios of customers, the platform has pre-developed and built-in a series of general system actions, such as the data diagnosis function.

trigger_8
